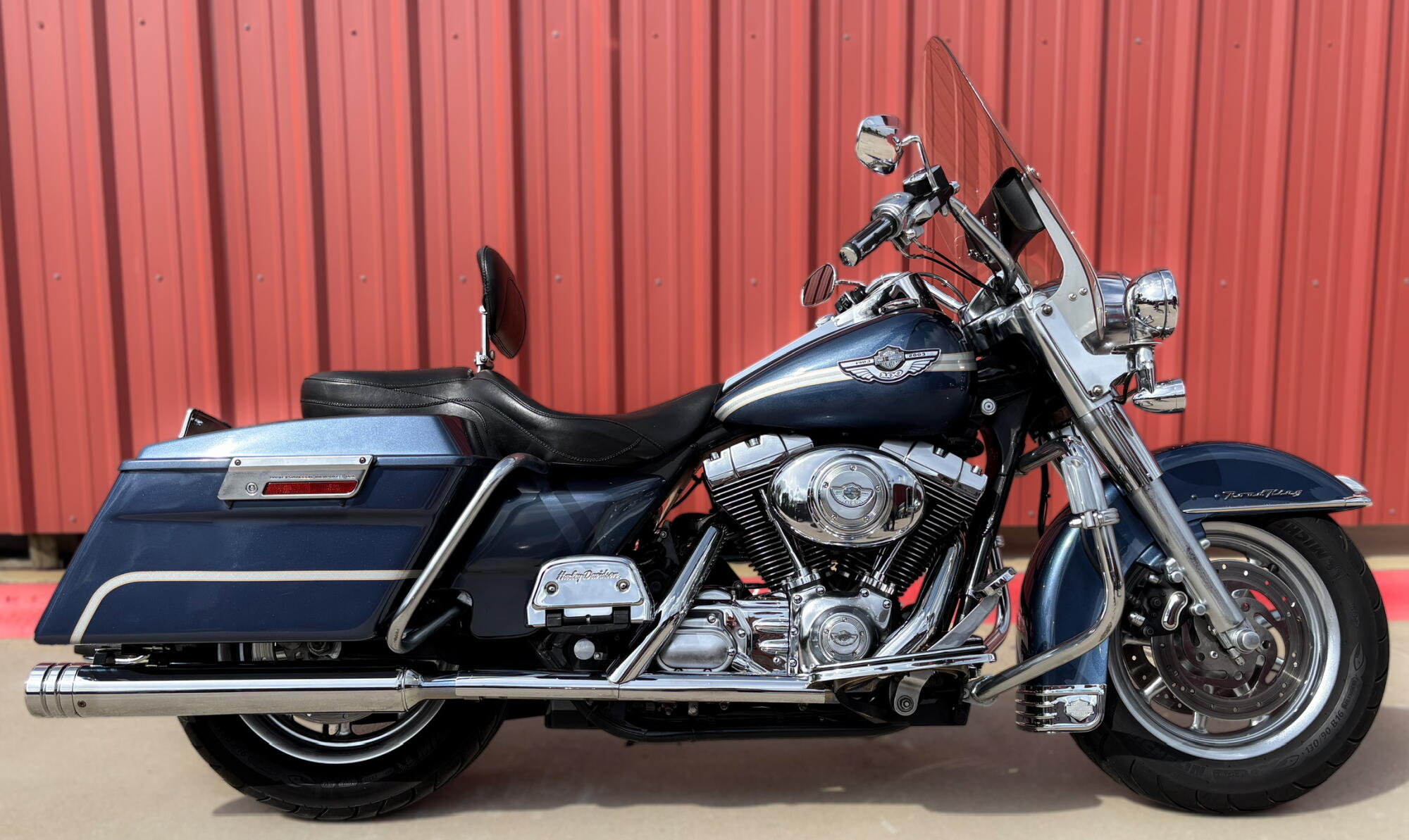

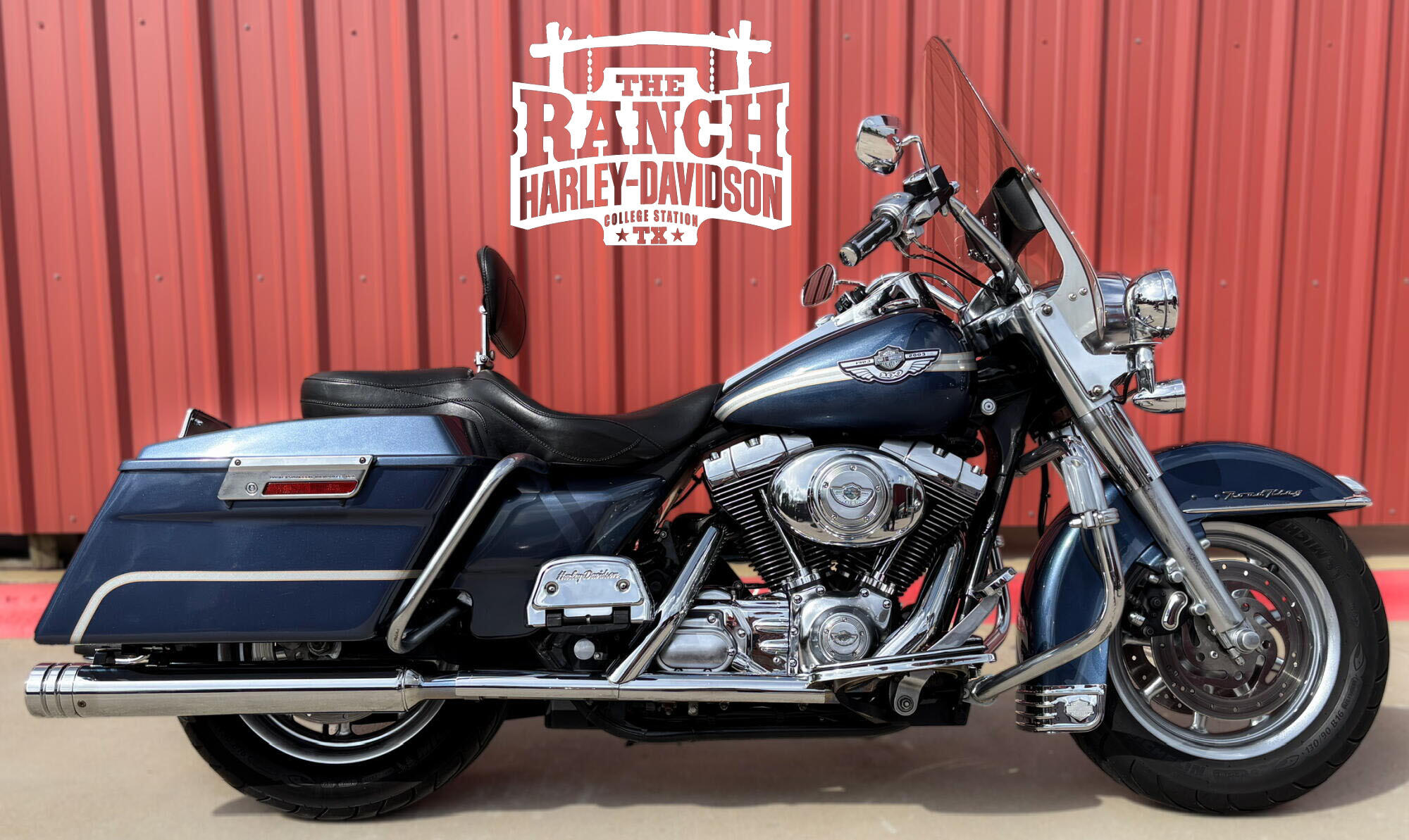

The Road King combines classic Harley-Davidson styling with touring comfort and features. At the heart of the Road King® is the Twin Cam 88® engine, isolation-mounted in the touring frame for comfortable riding. The Road King features an easier-shifting transmission, a large, electronic speedometer mounted in a diecast chrome dash, and a massive, nostalgic chrome headlamp and nacelle to accent the traditional styling of the Road King® model.

Key FLHR/I Road King® characteristics:

-Heritage-rich styling

-Detachable windshield-

Large, tank-mounted speedometer

-Two-piece seat

-Fiberglass saddlebags

-Vibration-isolated, Black and Chrome Twin Cam 88® Engine-

Triple-disc brakes

-Air-adjustable rear touring suspension

SPECIFICATIONS:

2003 Specifications FLHR/I Road King®

DIMENSIONS

Length 93.7 in. (2380.0 mm)

Seat Height (measure laden w/ 180 lb. rider) 27.3 in. (693.4 mm)

Seat Height (unladen) 29.5 in. (749.3 mm)

Ground Clearance 5.1 in. (130.0 mm)

Rake 26.0 degrees

Trail 6.2 in. (157.5 mm)

Wheelbase 63.5 in. (1612.9 mm)

Tires: Dunlop Harley-Davidson SeriesFront – D402F MT90B16 72H

Rear – D402 MT90B16 74H

Fuel Capacity (includes 1.0 gal. reserve) 5.0 gal. (18.9 L)

Reserve Fuel Capacity (warning light @ approx. 1.0 gal. for ESPFI models) 1.0 gal. (3.8 L)

Oil Capacity 4.0 qts. (3.8 L)

Dry Weight 723.0 lbs. (328.2 kg)

Vehicle Weight In Running Order (unladen) 759.0 lbs. (344.6 kg)

Gross Vehicle Weight Rating 1259.0 lbs. (571.6 kg)
