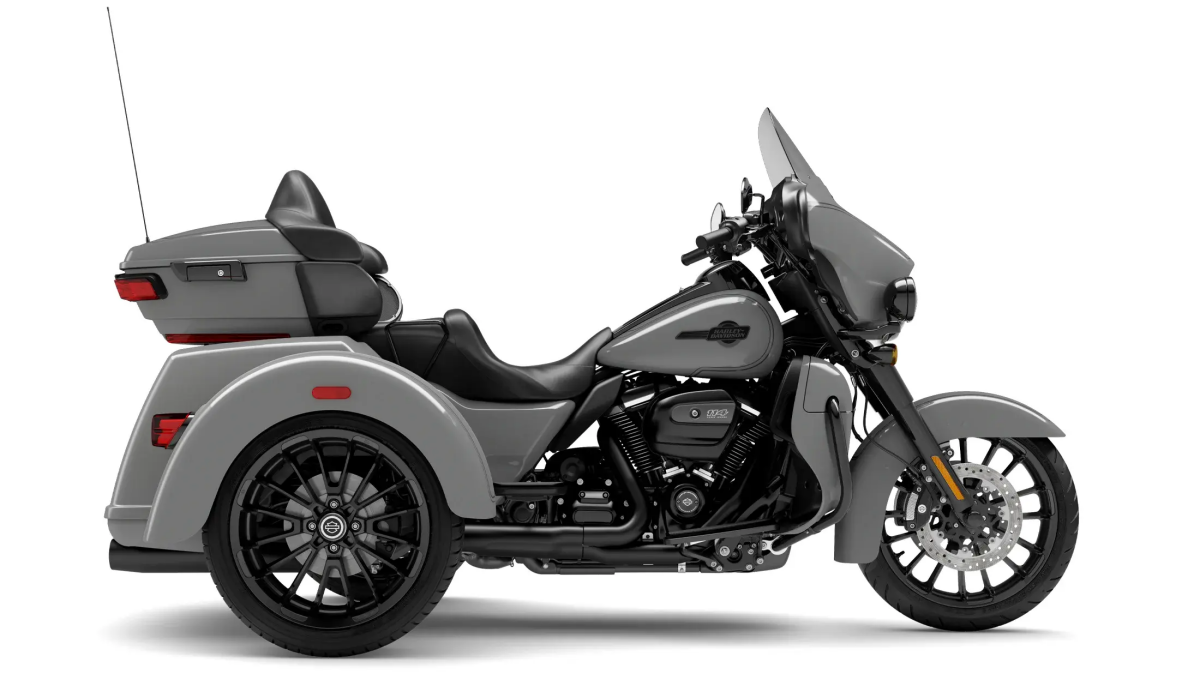

The 2025 Harley-Davidson® Tri Glide® Ultra in Billiard Gray with a Black Finish is a stunning three-wheeled touring motorcycle that seamlessly blends classic design with modern features. This model is perfect for riders seeking the stability of a trike without sacrificing the iconic Harley-Davidson® style. The Billiard Gray color gives it a sleek and sophisticated look, while the black finish accents add a touch of boldness and elegance.


Equipped with a powerful Milwaukee-Eight® 114 V-Twin engine, this trike offers smooth and robust performance, ideal for long journeys and highway cruising. The comfortable seat and ergonomic design ensure a relaxed riding experience, even on extended trips. The Tri Glide® Ultra also comes with a host of advanced features, including a Boom!™ Box GTS infotainment system with a large touchscreen, GPS navigation, and Bluetooth connectivity, keeping you entertained and connected on the road.


Riders will appreciate the ample storage space, perfect for carrying gear and essentials, making it an excellent choice for touring enthusiasts. The advanced suspension system provides a smooth ride, while the Reflex™ Linked Brembo® brakes with ABS ensure confident handling and safety. Overall, the 2025 Harley-Davidson® Tri Glide® Ultra in Billiard Gray with Black Finish is a luxurious and capable machine, designed for those who crave adventure and comfort on three wheels.

Specifications

  • Dimensions
    add remove
    • Length:
      105.1 in
    • Seat height, unladen:
      28.9 in
    • Ground clearance:
      4.9 in
    • Rake (steering head):
      26
    • Trail:
      4.0 in
    • Wheelbase:
      65.7 in
    • Tires, front specifications:
      MT 130/60B19 M/C 61H
    • Tires, rear specifications:
      P215/45R18 83T
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,199 lbs
    • Weight, in running order:
      1237 lb
    • Luggage capacity – volume:
      6.8 cu ft (0.19 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      120.2 ft-lb
    • Engine torque (RPM):
      2500
    • Horsepower:
      93 HP / 69 kW @ 5020 rpm
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      42 mpg (5.6 l/100km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.741
    • Gear Ratios (overall) 6th:
      3.157
  • Chassis
    add remove
    • Front fork:
      49mm dual bending valve
    • Rear shocks:
      Hand-adjustable emulsion rear suspension
    • Wheels, front type:
      Black, 7-spoke Cast Aluminum
    • Wheels, rear type:
      Black, 7-spoke Cast Aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch
    • Headset specifications (if equipped):
      16 - 64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Standard (Passenger Headset Sold Separately)
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported
